Short description:

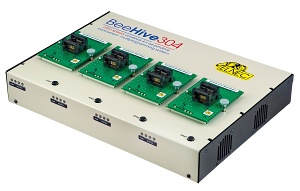

  • four independent universal programming sites (BeeProg3 programming core based) in one unit
  • the programmer perfectly fits for high-demanding desktop programming, as well as for automated programming systems
  • based on a state of the art FPGA design, powerful ARM processor and internal SSD, the BeeProg3 is ready to program devices at theoretically possible speeds
  • 64-pins rich-features, precise and powerful pindriver provides programming signals for every technology of programmable devices
  • it supports devices with VCC voltages as low as 0.8V
  • ultra fast programming speed, one of the fastest programmers worldwide. Sustainable programming speed greater than 20 MBytes per second
  • the 2 GB eMMC NAND Flash could be done in less than 100 sec, if supported memories would be fast enough
  • it utilizes both universal programming modules, dedicated for IC package type and specialized modules, designed optimized for specific device families
  • in-circuit programming capability is available using a specialized ISP module
  • ESD protection on each pins of the programming modules interface (pindriver and also supporting signals)
  • dual connection to the PC: USB (2.0 HighSpeed) and LAN
  • comfortable and easy to use control program, works with all versions of MS Windows from Windows XP to Windows 8.1 (32-bit and 64-bit)
  • two BeeHive304 units can be attached to one control PC to better utilize programming workplace
  • implementation into available 3rd party automated programmers and ATE machines using simple remote control
  • one software can serve up to 64 programming sites in one automated programmer (16x BeeHive304 programmers)
  • unique quick reaction to customer's needs - software update can be ready within a day from request, by OnDemand software
  • developed and made in Slovakia
  • warranty - 3 years
