Short description:

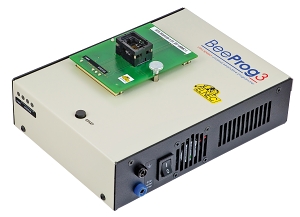

  • the BeeProg3 was designed meticulously with attention to details, quality and reliability
  • the programmer perfectly fits for high-demanding desktop programming, as well as for automated programming systems
  • based on a state of the art FPGA design, powerful ARM processor and internal SSD, the BeeProg3 is ready to program devices at theoretically possible speeds
  • 64-pins rich-features, precise and powerful pindriver provides programming signals for every technology of programmable devices
  • logic signals frequency up to 125MHz at 3.3V and 80MHz at 5V
  • it supports devices with VCC voltages as low as 0.8V
  • ultra fast programming speed, one of the fastest programmers worldwide. Sustainable programming speed greater than 20 MBytes per second
  • the 2 GB eMMC NAND Flash could be done in less than 100 sec, if supported memories would be fast enough
  • it utilizes both universal programming modules, dedicated for IC package type and specialized modules, designed optimized for specific device families
  • in-circuit programming capability is available using a specialized ISP module
  • ESD protection on each pin of the pindriver
  • dual connection to the PC: USB (2.0 HighSpeed) and LAN (100 Mbit)
  • comfortable and easy to use control program, works with all versions of MS Windows from Windows XP to Windows 8.1 (32-bit and 64-bit)
  • unique quick reaction to customer's needs - software update can be ready within a day from request, by OnDemand software
  • Multiprogramming possible by attaching more programmers to one PC
  • developed and made in Slovakia
  • warranty - 3 years
